Monte Carlo RAdiation Diffusion (MCRAD) is a software tool I developed to describe how light travels and spreads out through matter, especially turbid or ‘‘grainy’’ materials. MCRAD is especially useful to investigate how light moves through bacterial films, where light diffusion can make imaging difficult. It also can be used to investigate how light travels through the atmosphere causing, e.g., the sky to appear blue and clouds to appear grey or white. The code is available on my Github account here.

The Monte Carlo (MC) method uses statistics to predict how light moves through a bulk material. Imagine playing a game of pool. During the break shot, the cue ball is launched into the other balls, sending the cue ball and object balls randomly in all directions. The MC method works by launching a group of photon packets (similar to the cue ball) into a space filled with particles such as water droplets or bacteria cells (similar to the object balls). The MCRAD code tracks the location of the photon packets, and uses statistics to describe how light diffuses through the material on average.

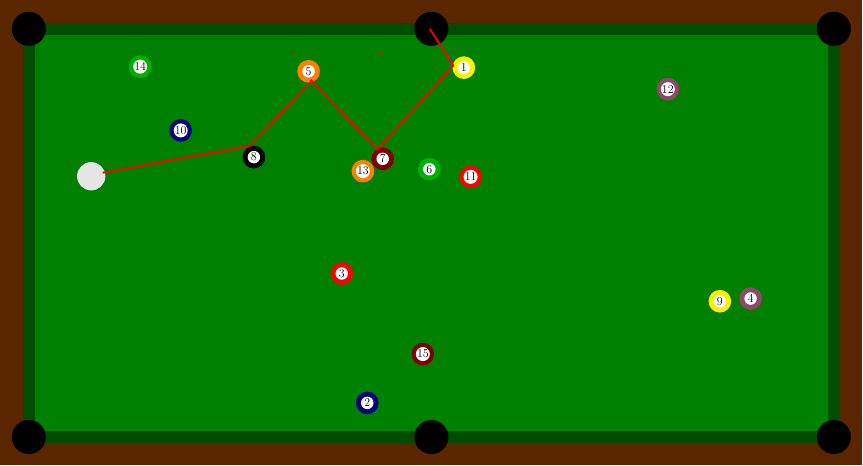

Illustration of billiard ball scattering
Illustration of photon scattering
Left: Illustration of billiard ball "scattering" off of object balls. Right: illustration of photons propagating through a medium. Red shading indicates the average light intensity, and magenta lines indicate several individual photon paths. On average, scattering causes a beam of light to spread out or diffuse through the medium.

MCRAD tracks a variety of quantities including:

  • amount and locations of incident light that is absorbed, transmitted, and reflected,
  • angular distribution of transmitted and reflected light,
  • scattering order and time delay of transmission, reflection, and absorption,
  • beam radius and penetration depth, and
  • fluorescence generation, reabsorption, and transmission intensity and location. In addition, images can be simulated using scattered or fluorescence light.

The following figures demonstrate some example results from MCRAD that are used in my research.

Photon paths in a scattering medium
Calculated photon paths in an E. coli biofilm (left) compared with paths through a transparent medium calculated with MCRAD. In the biofilm, photon packets frequently collide with cells which deflects the packets slightly. Each interaction additionally provides an opportunity for a photon to be absorbed, reducing the "weight" or intensity of the photon packet. From the illustration, photons appear to only penetrate through about 30 microns of the biofilm for this condition.
